Diode Dynamics D-Switch – Bluetooth 8‑Channel 12V Switch Panel

Description

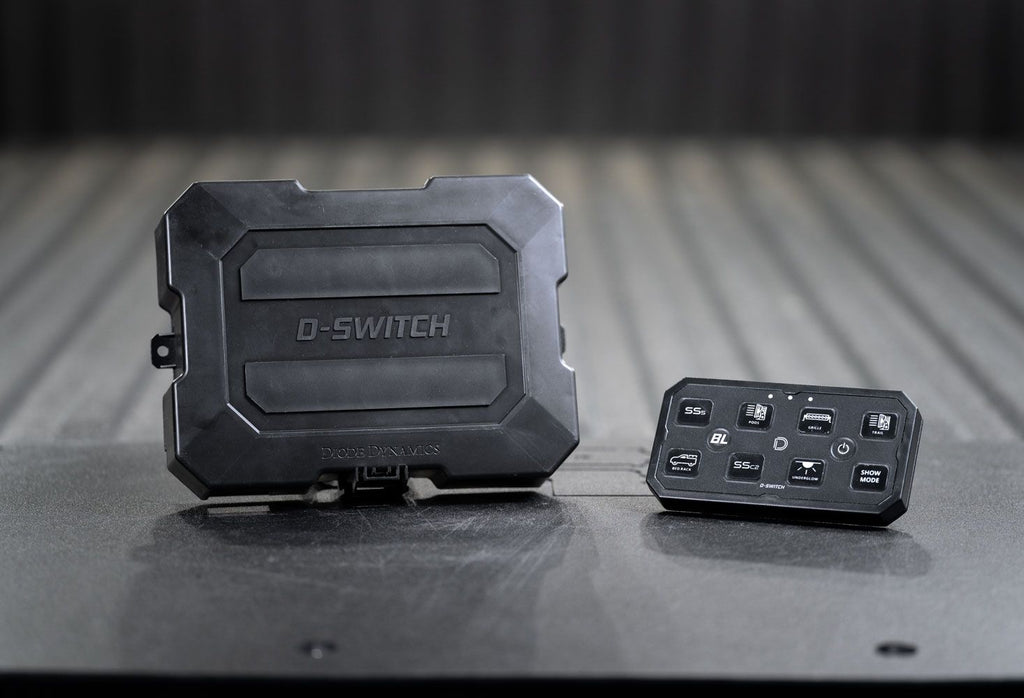

Take full control of your vehicle’s 12V accessories with the Diode Dynamics D‑Switch, a premium Bluetooth-enabled switch panel designed for overlanders, off-roaders, and backcountry explorers. With 8 programmable outputs, solid-state reliability, and app control via iOS or Android, this system brings unmatched versatility to your build.

Mount lights, air compressors, fridge systems, or winches—then assign buttons with dynamic controls like dimming or strobing. A 9th dedicated backlight channel lets you power your rig’s accent lighting without sacrificing main outputs. Designed, tested, and assembled in the USA, the D‑Switch is IP67-rated for all-weather performance.

Key Features

• 8 main outputs + 1 dedicated backlight channel (up to 125 A total)

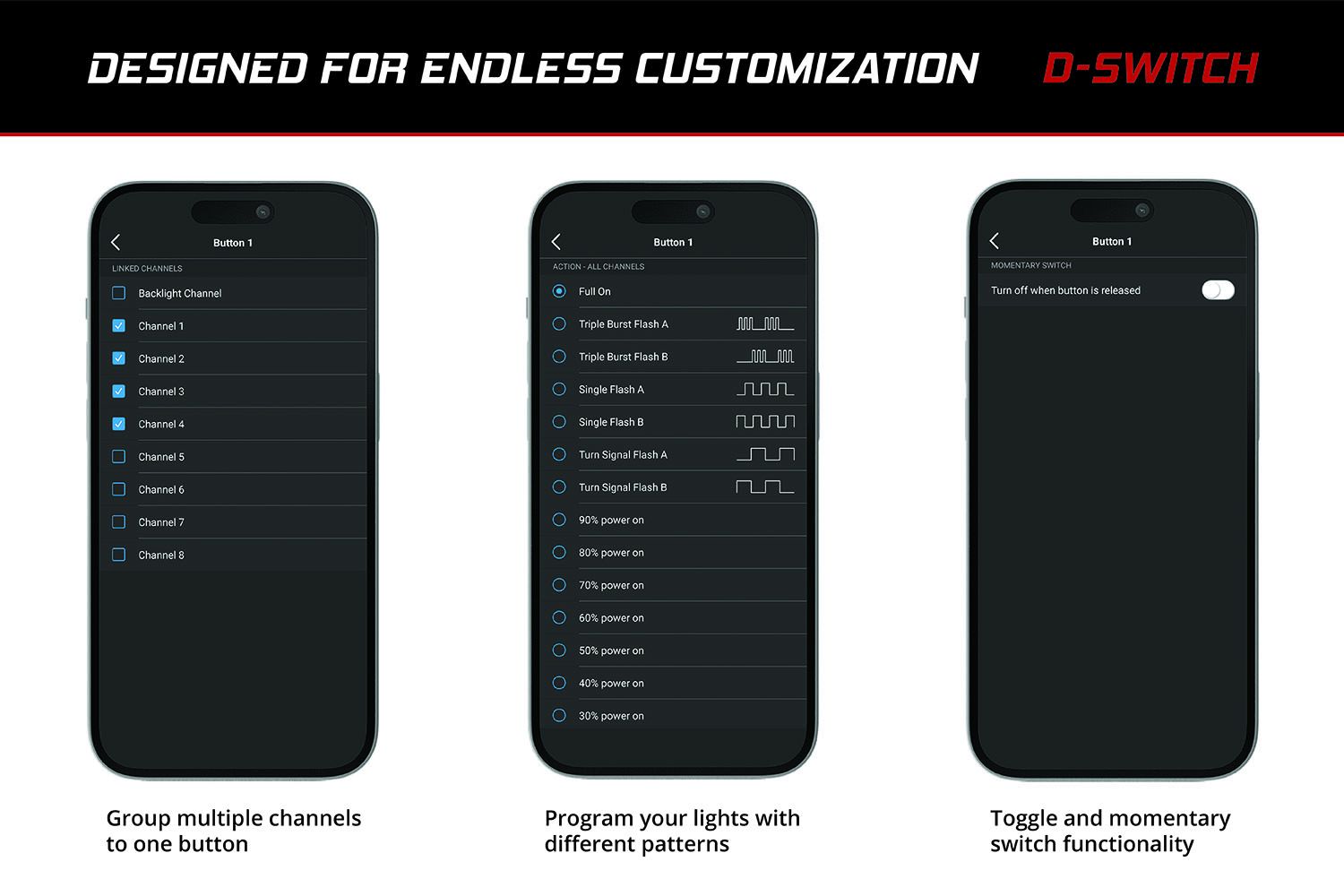

• Control multiple accessories from one button with dynamic assignment
• Bluetooth control with fast, lag‑free app (iOS + Android)
• OEM‑style integration: 4 trigger wires + ignition signal support
• Solid‑state sealed design — no relays, fuses, or mechanical parts
• IP67 waterproof housing with passive aluminum heatsink
• Made in the USA and backed by a 3‑year warranty

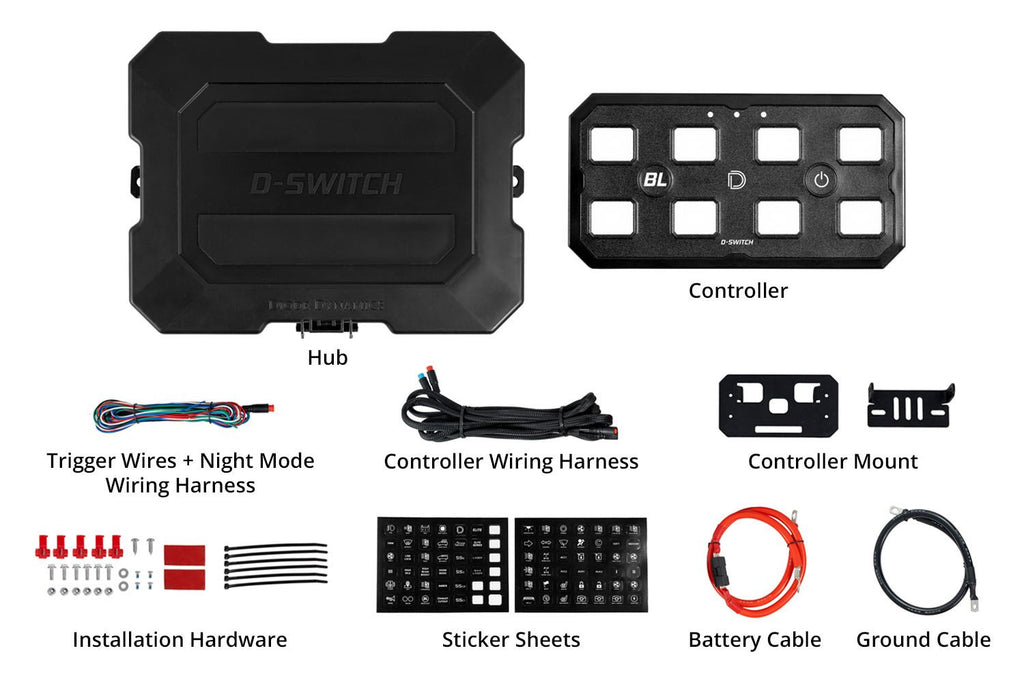

What’s in the Box

• (1) D‑Switch Hub
• (1) Switch Panel Controller
• (1) Universal Mounting Bracket
• (1) 10‑ft Controller Wiring Harness
• (1) Trigger + Night Mode Wire Harness
• (1) 3‑ft 4AWG Battery Cable
• (1) 3‑ft 4AWG Ground Cable
• (2) Button Sticker Sheets
• (5) T‑Taps
• (6) Zip Ties
• Mounting Hardware + Double‑sided Tape
• Installation & Programming Guide

Technical Specifications

• Output Channels: 4× 15 A, 4× 30 A, 1× 15 A (Backlight)
• Max System Current: 125 A
• Voltage: 9–16 V DC
• Operating Temp: –40 °F to 250 °F
• Weather Rating: IP67 (Water & Dustproof)
• Cooling: Passive fin‑style heatsink
• Controller Dimensions: 5.06″ × 2.66″ × 0.45″
• Hub Dimensions: 8.33″ × 6.26″ × 1.79″
• Weight (Total): 4.7 lbs (5.6 lbs shipping)
• Wire Gauge: 4 AWG battery, 22 AWG trigger, 26 AWG controller

Warranty & Support

• 3‑Year Manufacturer Warranty
• 30‑Day Returns — No Restocking Fees
• 100% Satisfaction Guarantee
• Ships fast with tracking from All Trails Lead North

Purpose in Every Kit

Built for trail rigs and command vehicles, the D‑Switch brings powerful customization, rugged durability, and intuitive control to any build. Designed by Diode Dynamics, trusted by explorers, and backed by real support—this controller turns your accessory setup into a precision tool for serious adventure.
